Product brief introduction:
BF-CU series outdoor condensing unit Apply to all kinds of high,Temperature of the cold storage, the Display ark，storage,Industrial equipment, etc.According to industry within Different customers,Points 3 kinds of products The BF-CUA ordinary series,The BF-efficient series, don The BF-CUC ejector wind series.BEIFENG company Use the professional research and development， Design team.Coda production equipment,Modern test equipment Ensure that the product high price.
BF-CUC series outdoor-cooled condensing unit capacity
R22/R404A
|
Condensing Unit Model |
Atub Temp ℃ |
|
Capacity(watt) |
||||||||
|
Evaporating temperature(℃) |
|||||||||||
|
-25 |
-20 |
-15 |
-10 |
-5 |
0 |
5 |
7.2 |
10 |
|||
|
BF-CLC500M MLM038T4 |
32 |
QO
|
|
|
6745 |
8367 |
10199 |
12119 |
13955 |
14786 |
15843 |
|
38 |
|
7732 |
9577 |
11309 |
13318 |
1389 |
14880 |
||||
|
43 |
9056 |
10601 |
12580 |
13302 |
14223 |
||||||
|
BK-CUC500MY MLZ038T4 |
32 |
QO
|
5376 |
6390 |
7501 |
9178 |
10865 |
12542 |
14443 |
15304 |
16397 |
|
38 |
4765 |
5772 |
6952 |
8364 |
9927 |
11685 |
13517 |
14306 |
15310 |
||
|
43 |
|
5274 |
6390 |
7704 |
8982 |
10579 |
12301 |
13001 |
13895 |
||
|
BF CUC600M MLM045T4 |
32 |
QO
|
|
|
8089 |
9956 |
12018 |
14290 |
16697 |
17761 |
19116 |
|
38 |
|
|
|
9308 |
11339 |
13432 |
15767 |
16802 |
18120 |
||
| 43 |
|
|
|
|
10763 |
12573 |
14938 |
15842 |
17123 |
||
|
BF-CUC600MV Mli045T4 |
32 |
QO
|
6365 |
7549 |
9130 |
10895 |
12846 |
14687 |
17383 |
18484 |
19886 |
|
38 |
5869 |
7045 |
8380 |
9951 |
11610 |
13633 |
16002 |
17054 |
18391 |
||
|
43 |
|
6396 |
7768 |
8984 |
10551 |
12297 |
14493 |
J5469 |
16711 |
||
|
BF-CLC700M MLM048T4 |
32 |
QO
|
|
|
9364 |
1124(5 |
13169 |
15352 |
17861 |
18875 |
20116 |
|
38 |
|
|
|
10603 |
12693 |
11611 |
16734 |
17774 |
19126 |
||
|
43 |
|
|
|
|
|
11036 |
16103 |
17073 |
18531 |
||
|
BF-CUC700MY MLZ048T4 |
32 |
QO
|
6885 |
8267 |
9691 |
11638 |
13836 |
16200 |
1B800 |
20053 |
21647 |
|
38 |
6537 |
7930 |
9343 |
10761 |
12883 |
15066 |
17492 |
18650 |
20123 |
||
|
43 |
|
7340 |
8513 |
10042 |
11656 |
13615 |
15814 |
16851 |
18172 |
||
|
BF-CUC800M MLM058T4 |
32 |
QO
|
|
|
10396 |
12568 |
14894 |
17535 |
20392 |
21551 |
23511 |
|
38 |
|
|
|
11741 |
14094 |
16564 |
18613 |
20308 |
22286 |
||
|
43 |
|
|
|
|
13195 |
15504 |
18433 |
19565 |
21360 |
||
|
BF-CUC800MY MLZ058T4 |
32 |
QO
|
7961 |
9287 |
10759 |
13518 |
15926 |
18659 |
21520 |
22927 |
24850 |
|
38 |
7546 |
8772 |
10318 |
12430 |
14612 |
17015 |
19906 |
21323 |
23127 |
||
|
43 |
|
8257 |
9691 |
11309 |
13105 |
15039 |
17976 |
19268 |
20912 |
||
|
BF-CIC900M MLM066T4 |
32 |
QO
|
|
|
12078 |
14710 |
17525 |
20742 |
24110 |
25685 |
27593 |
|
38 |
|
|
|
13915 |
16598 |
19692 |
22950 |
24382 |
26232 |
||
|
43 |
|
|
|
|
15471 |
18642 |
21590 |
23077 |
24871 |
||
|
BF-CUC900MY MLZ066T4 |
32 |
QO
|
8537 |
10832 |
12611 |
15440 |
18357 |
21790 |
25177 |
26709 |
28684 |
|
38 |
8135 |
9628 |
11626 |
14128 |
16853 |
19994 |
23201 |
24656 |
26636 |
||
|
43 |
|
9141 |
11048 |
13424 |
15189 |
18067 |
20924 |
22265 |
24103 |
||
|
BF-CUC1000V1 MLM076T4 |
32 |
QO
|
|
|
14386 |
17097 |
20316 |
23788 |
27646 |
29266 |
31584 |
|
38 |
|
|
|
16236 |
19272 |
22526 |
26226 |
27741 |
29724 |
||
|
43 |
|
18427 |
21564 |
24806 |
26415 |
28464 |
|||||
|
BF CUC1000MY MLZ076T4 |
32 |
QO
|
11064 |
12949 |
15693 |
18705 |
22352 |
25748 |
29641 |
31325. |
33724 |
|
38 |
10364 |
12169 |
14472 |
17281 |
20169 |
23676 |
27434 |
29171 |
3138? |
||
|
43 |
11669 |
13563 |
16011 |
18465 |
21402 |
24837 |
26402 |
28386 |
|||
Note:Rated condition:50HZ, Gas return temp. 20℃,The Iiquid is supercooled
technological parameter
|
Outdoor unit |
Compressor |
Air volume(m³/h) |

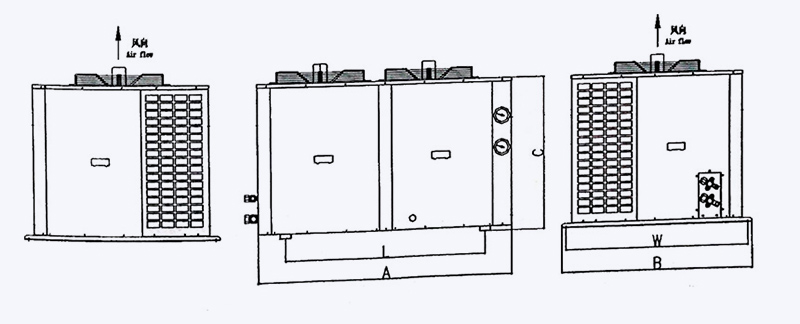

A×B×C External dim(mm) |
L×W Mount dim(mm) |
Conned pipe(inch) |
|||
|
Model |
voltage(V) |
Dlspiac ement(m³/h) |
||||||
|
outlet |
Inlet |
|||||||
|
BF-CUA200M BK-CUA200MY |
MLMZ015T4 |
380/3/50 |
5.9 |
1×3420 |
950×355×840 |
580×390 |
3/8" |
5/8" |
|
BF-CUA300M BF-CUA300MY |
MLM/MLZ021T4 |
380/3/50 |
8 |
1×3420 |
950×355×840 |
580×390 |
3/8" |
5/8" |
|
BF-CUA400M BF-CUA400MY |
MLM/MI.Z030T4 |
380/3/50 |
12 |
1×3420 |
950×355×940 |
580×390 |
3/8" |
5/8" |
|
BF-CUA500M BF-CUA500MY |
MLM/MLZ038T4 |
380/3/50 |
14.1 |
2×3420 |
950×355×1245 |
580×390 |
1/2" |
3/4" |
|
BF-CUA600M BF-CUA600MY |
MLM/MLZ045T4 |
380/3/50 |
17.2 |
2×3420 |
950×355×1245 |
580×390 |
1/2" |
3/4" |
|
BF-CUB100MS BF-CUB100MYS BF-CUB100JYS |
CAJ9510T CAJ9510Z CAJ2446Z |
220/1/50 |
18.3 18.3 26.15 |
1×1590 |
1050×370×590 |
730×340 |
3/8" |
5/8" |
|
BF-CUB150MS BF-CUB150MYS BF-CUB150JYS |
CAJ9519T CAJ9519Z CAJ2464Z |
220/1/50 |
34. 45 31. 45 34.45 |
1×2490 |
1050×370×590 |
730×340 |
3/8" |
5/8" |
|
BF-CUB200M BF-CUB200MY BF-CUB200JY |
TFH4524F TFH4524Z TFH2480Z |
380/3/50 |
43. 5 43.5 53.2 |
1×2490 |
1100×370×640 |
780×340 |
3/8" |
5/8" |
|
BF-CUB300M BF-OJB300MY BF-OJB300JY |
TFH4540F TfH4540Z TFH2511Z |
380/3/50 |
74. 25 74.25 74.25 |
1×3520 |
1100 × 370 × 640 |
780×340 |
3/8" |
5/8" |
|
BF-CUB400M BF-CUB400MY BF-CUB400JY |
TAG4546T TAG4546Z TAG2516Z |
380/3/50 |
90.2 112.5 112.5 |
1×3520 |
1100×420×690 |
780×390 |
1/2" |
3/4" |
|
BF-CUB500M BF-CUB500MY BF-CUB500JY |
TAG4561T TAG4561Z TAG2522Z |
380/3/50 |
112.5 134.4 |
2×3520 |
1100×420×1245 |
780×390 |
1/2" |
3/4" |
|
BF-CUB600M BF-CUB600MY |
TAG4568T TAG4568Z |
380/3/50 |
124.4 124.4 |
2× 3520 |
1100×420×1245 |
780×390 |
1/2， |
3/4" |
|
BF-CUC500M BF-CUC500MY |
MLM/MLZ038T4 |
380/3/50 |
14. 1 |
1×6570 |
820×750×765 |
550×720 |
1/2" |
3/4" |
|
BF-CUC600M 15F-CUC&00MY |
MLM/MLZ045T4 |
380/3/50 |
17.2 |
1×6570 |
820×750×765 |
550×720 |
1/2" |
3/4" |
|
BF-CUC700M BF-OJC700MY |
MLM/MLZ048T4 |
380/3/50 |
18.7 |
1×8750 |
820×750×765 |
550×720 |
1/2" |
3/4" |
|
BF-CUC800M BF-CUC800MY |
MLM/MLZ058T4 |
380/3/50 |
21.9 |
I× 8750 |
970×750×865 |
700×720 |
5/8" |
.1-1/8" |
|
BF-CUC9M BF-01C900MY |
MLM/MLZ066T4 |
380/3/50 |
25.9 |
2×6570 |
1360×750×865 |
1150×720 |
5/8" |
1-1/8" |
|
BF-CUC1000M BF-CUC1000MY |
MLM/MLZ076T4 |
380/3/50 |
28.3 |
2×6570 |
1360×750×865 |
1150×720 |
5/8" |
1-1/8" |

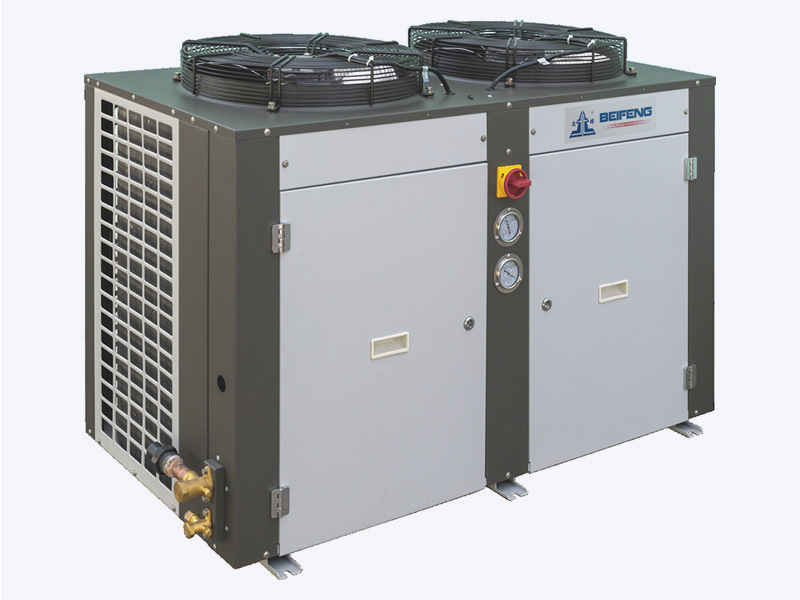

BF-CUC SERIES OUTDOOR COOLED CONDENSING UNIT
