Unit power |
2HP |
3HP |
4HP |
5 HP |
6HP |
||||||||||||
|
CODENSING UNIT |
Power supply |
380V/3/50Hz~220V/1/50Hz |
380V/3/50Hz |
||||||||||||||
|
Evaporation temp range |
-15 °C~+10 °C |
||||||||||||||||
|
Model |
BF-CUB0200MY(S) |
BF-CUB0300MY(S) |
BF-CUB0400MY |
BF-CUB0500MY |
BF-CUB0600MY |
||||||||||||
|
Nominal condition performance |
Capacity |
3.46 KW |
4.88 KW |
7.14 KW |
8.2 KW |
9.76 KW |
|||||||||||
|
COP |
≥1.8 |
≥1.8 |
≥1.8 |
≥2.2 |
≥2.2 |
||||||||||||
|
Compressor |
Type |
Danfoss ALL-IN-ONE Condensing Unit |
|||||||||||||||
|
Model |
MLZ015T4/T5 |
MLZ021T4/T5 |
MLZ030T4 |
MLZ038T4 |
MLZ045T4 |
||||||||||||
|
Fan motor |
Quantity |
1 |
1 |
1 |
2 |
2 |
|||||||||||
|
Total power |
60W |
60W |
60W |
60Wx2 |
60Wx2 |
||||||||||||
|
Connecting pipe diameter |
Suction |
5/8 " |
5/8 " |
3/4 " |
3/4 " |
3/4 " |
|||||||||||
|
Exhaust |
3/8 " |
3/8 " |
3/8 " |
1/2 " |
1/2 " |
||||||||||||
|
External drawin |
Number |
A1 |
A2 |
||||||||||||||
|
Net weight |
76kg |
82.5kg |
95kg |
118kg |
123kg |
||||||||||||
|
Matching electric aircooler |
Model |
NPC301D04 |
NPC302C04 |
NPC302F04 |
NPC402C04 |
NPC402D04 |
|||||||||||
|
Fan Motor |
Quantity |
1 |
2 |
2 |
2 |
2 |
|||||||||||
|
Total power |
68W |
68Wx2 |
68Wx2 |
135Wx2 |
135Wx2 |
||||||||||||
|
Electric Heating Defrost |
Input power |
2.5KW |
3KW |
5KW |
3KW |
3KW |
|||||||||||
|
Fin space |
4mm |
||||||||||||||||
|
Outline |
Number |
B1 |
B2 |
||||||||||||||
|
Dimensions |
LxWxH |
730x500x450 |
1180x500x450 |
1355x550x570 |
|||||||||||||
|
Installation And Positioning size |
CxE |
390x477 |
390x930 |
450x1105 |
|||||||||||||
|
Net Weight |
20kg |
32kg |
38kg |
47kg |
50kg |
||||||||||||
|
Nominal condition：Evaporation temp -10℃，ambient temp32℃，Return superheat 11K,have super cooling |
|||||||||||||||||
|
Unit power |
7HP |
8HP |
9HP |
10HP |
15HP |
||
|
CODENSING UNIT |
Power supply |
380V/3/50Hz |
|||||
|
Evaporation temp range |
-15 °C~+10°C |
||||||
|
Model |
BF-CUB0700MY(S) |
BF-CUC0800MY(S) |
BF-CUC0900MY |
BF-CUC1000MY |
BF-CUC1500MY |
||
|
Nominal condition performance |
Capacity |
11.2 KW |
12.6 KW |
14.7 KW |
17.1 KW |
26.1 KW |
|
|
COP |
≥2.2 |
≥2.2 |
≥2.2 |
≥2.2 |
≥2.2 |
||
|
Compressor |
Type |
ALL Danfoss Inside Unit |
|||||
|
Model |
MLZ048T4 |
MLZ058T4 |
MLZ066T4 |
MLZ076T4 |
MLZ116T4 |
||
|
Fan motor |
Quantity |
2 |
2 |
2 |
2 |
2 |
|
|
Total power |
60Wx2 |
450Wx2 |
450Wx2 |
450Wx2 |
450Wx2 |
||
|
Connecting pipe diameter |
Suction |
7/8 " |
1-1/8 " |
1-1/8 " |
1-1/8 " |
1-5/8 " |
|
|
Exhaust |
1/2 " |
5/8 " |
5/8 " |
5/8 " |
5/8 " |
||
|
External drawing |
Number |
A2 |
A3 |
A4 |
|||
|
Net weight |
153kg |
172kg |
178kg |
181kg |
301kg |
||
|
EVAPORATOR |
Model |
NPC402F04 |
NPC402F04 |
NPC403E04 |
NPC403E04 |
NPI502F04 |
|
|
Fan motor |
Quantity |
2 |
2 |
3 |
3 |
2 |
|
|
Total power |
135Wx2 |
135Wx2 |
135Wx3 |
135Wx3 |
820Wx2 |
||
|
Electric Heating Defrost |
Input power |
5KW |
5KW |
4.5KW |
7.5KW |
9KW |
|
|
Fin space |
4mm |
||||||
|
External drawing |
Number |
B2 |
B3 |
B2 |
|||
|
External dimension |
LxWxH |
1355x550x570 |
1895x550x570 |
1990x700870 |
|||
|
Installation dimension |
CxE |
450x1105 |
450x1645 |
590x1647 |
|||
|
Net weight |
57kg |
69kg |
74kg |
178kg |
|||
|
Nominal condition：Evaporation temp -10℃，ambient temp32℃，Return superheat 11K,have super cooling |
|||||||
R404A medium and low temperature All-ine-one condensing unit parameters table
|
Unit power |
2HP |
3HP |
4HP |
5HP |
6HP |
|||||||||||
|
CODENSING UNIT |
Power supply |
380V/3/50Hz~220W/1/50Hz |
380V/3/50Hz |
|||||||||||||
|
Eva poration tem p ran g |
-25 °C ~-10°C |
|||||||||||||||
|
Model |
BF-CUB0200MY(S) |
BF-CUB0300MY(S) |
BF-CUB0400MY |
BF-CUB0500MY |
BF-CUB0600MY |
|||||||||||
|
Nominal condition performance |
Capacity |
1.92 KW |
3.05 KW |
4.46 KW |
5.27 KW |
6.24 KW |
||||||||||
|
COP |
≥1.4 |
≥1.4 |
≥1.4 |
≥1.4 |
≥1.4 |
|||||||||||
|
Compressor |
Type |
ALL Danfoss Inside Unit |
||||||||||||||
|
Mode |
MLZ015T4/T5 |
MLZ021T4/T5 |
MLZ030T4 |
MLZ038T4 |
MLZ045T4 |
|||||||||||
|
Fan motor |
Quantity |
1 |
1 |
1 |
2 |
2 |
||||||||||
|
Total power |
60W |
60W |
60W |
60Wx2 |
60Wx2 |
|||||||||||
|
Connecting pipe diameter |
Suction |
5/8 " |
5/8 " |
3/4 " |
3/4 " |
3/4 " |
||||||||||
|
Exhaust |
3/8 " |
3/8 " |
3/8 " |
1/2 " |
1/2 " |
|||||||||||
|
External drawing |
Number |
A1 |
A2 |
|||||||||||||
|
Net weight |
76kg |
82.5kg |
95kg |
118kg |
123kg |
|||||||||||
|
EVAPORATOR |
Model |
NPC301C06 |
NPC302C06 |
NPC302D06 |
NPC402C06 |
NPC402D06 |
||||||||||
|
Fan Motor |
Quantity |
1 |
2 |
2 |
2 |
2 |
||||||||||
|
Total power |
68Wx2 |
68Wx2 |
68Wx2 |
135Wx2 |
135Wx2 |
|||||||||||
|
Electric Heating Defrost |
Input power |
1.5KW |
2.4KW |
2.4KW |
3KW |
3KW |
||||||||||
|
Fin space |
6mm |
|||||||||||||||
|
External drawing |
Number |
B1 |
B2 |
|||||||||||||
|
External dimension |
LxWxH |
730x500x450 |
1180x500x450 |
1355x550x570 |
||||||||||||
|
Installation dimension |
CxE |
390x477 |
390x930 |
450x1105 |
||||||||||||
|
Net weight |
17kg |
31kg |
34kg |
47kg |
50kg |
|||||||||||
|
Nominal condition741：Evaporation temp -25℃，ambient temp32℃，Return superheat 18K,have super cooling |
||||||||||||||||
|
Number of Units |
7HP |
8HP |
9HP |
10HP |
15HP |
||
|
CODENSING UNIT |
Power supply |
380V/3/50Hz |
|||||
|
Evaporation temp range |
-25 °C~-10°C |
||||||
|
Model |
BF-CUB0700MY(S) |
BF-CUC0800MY(S) |
BF-CUC0900MY |
BF-CUC1000MY |
BF-CUC1500MY |
||
|
Nominal condition performance |
Capacity |
6.9 KW |
8 KW |
8.5 KW |
11.1 KW |
14 KW |
|
|
COP |
≥1.4 |
≥1.4 |
≥1.4 |
≥1.4 |
≥1.5 |
||
|
Compressor |
Type |
ALL Danfoss Inside Unit |
|||||
|
Model |
MLZ048T4 |
MLZ058T4 |
MLZ066T4 |
MLZ076T4 |
MLZ116T4 |
||
|
Fan motor |
Quantity |
2 |
2 |
2 |
2 |
2 |
|
|
Total power |
60Wx2 |
450Wx2 |
450Wx2 |
450Wx2 |
600Wx2 |
||
|
Connecting pipe diameter |
Suction |
7/8 " |
1-1/8 " |
1-1/8 " |
1-1/8 " |
1-5/8 " |
|
|
Exhaust |
1/2 " |
5/8 " |
5/8 " |
5/8" |
5/8 " |
||
|
External drawing |
Number |
A2 |
A3 |
A4 |
|||
|
Net weight |
153kg |
172kg |
178kg |
181kg |
301kg |
||
|
EVAPORATOR |
Model |
NPC402F06 |
NPC402F06 |
NPC403D06 |
NPC403E06 |
NPI502D07 |
|
|
Fan Motor |
Quantity |
2 |
2 |
3 |
3 |
2 |
|
|
Total power |
135Wx2 |
135Wx2 |
135Wx3 |
135Wx3 |
820Wx2 |
||
|
Electric Heating Defrost |
Input power |
5KW |
5KW |
4.5KW |
7.5KW |
9KW |
|
|
Fin Pitch |
6mm |
||||||
|
External drawing |
Number |
B2 |
B3 |
B2 |
|||
|
External dimension |
LxWxH |
1355x550x570 |
1890x550x570 |
1990x700x850 |
|||
|
Installation dimension |
CxE |
450x1105 |
450x1645 |
590x1647 |
|||
|
Net Weight |
56kg |
69kg |
74kg |
157kg |
|||
|
Nominal condition：Evaporation temp -25℃，ambient temp32℃，Return superheat 18K,have super cooling |
|||||||

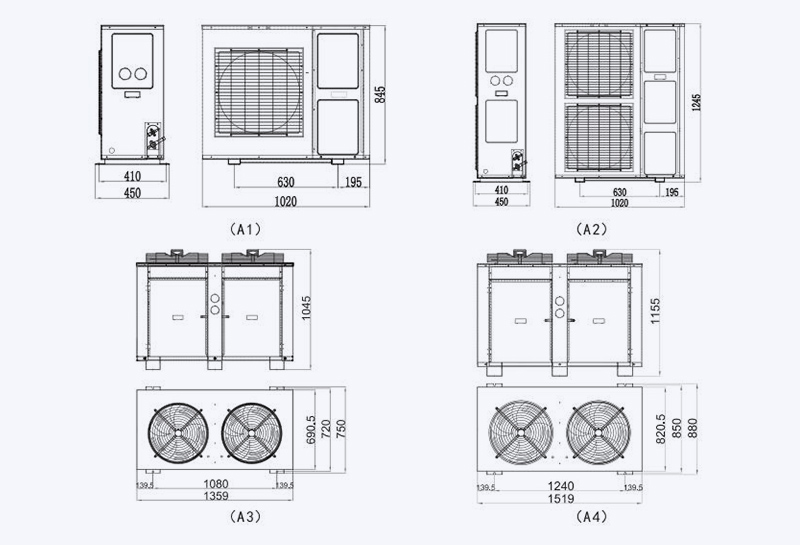

Unit overall drawing

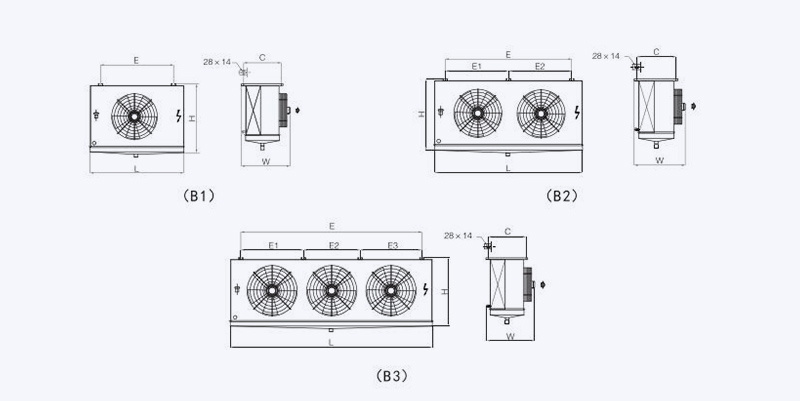

Air cooler overall drawing
●Increase the heat dissipation area and fan air volume to achieve efficient heat transfer, save electricity, and easily cope with bad working conditions in summer
●Thicken sheet metal, flexible pipeline design, reduce unit vibration
●Anticorrosive galvanized plate + electrostatic spray, durable corrosion resistance, not easy to scratch deformation, prolong the service life
●The compressor is equipped with standard sound insulation cotton to reduce noise pollution and residents' complaints during operation
Adopt Danfoss core components
|
|
|
|
|
|

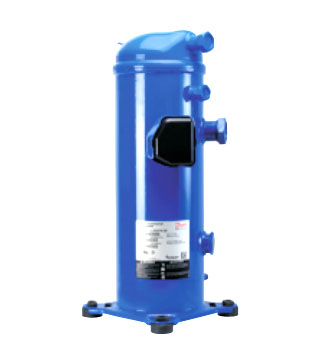

Scroll compressor Special compressor for cold storage, low failure rate, energy saving |

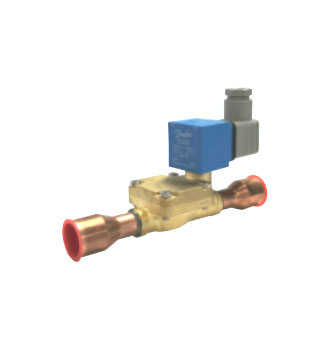

Solenoid valve 500 thousand times switch, long life, seconds kill other brands, strict control of refrigerant on and off |

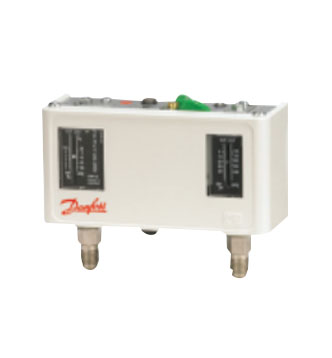

Pressure protection switch The force proportional action and double layer pressure control bellows protect the safety of the unit |

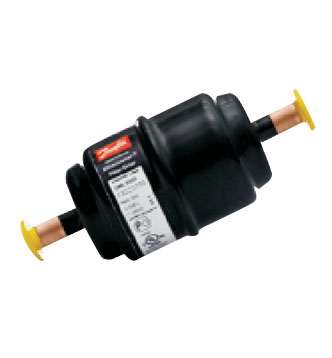

Dry filter Water absorption speed, high ability, high filtration efficiency, corrosion resistance, impurities and water nowhere to escape |

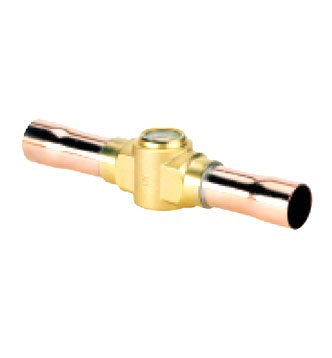

Sight glass Effectively control the refrigerant filling volume of the system to ensure reliability |
If you have any questions or need help, please contact us directly, we will provide you with online help and services in time.
