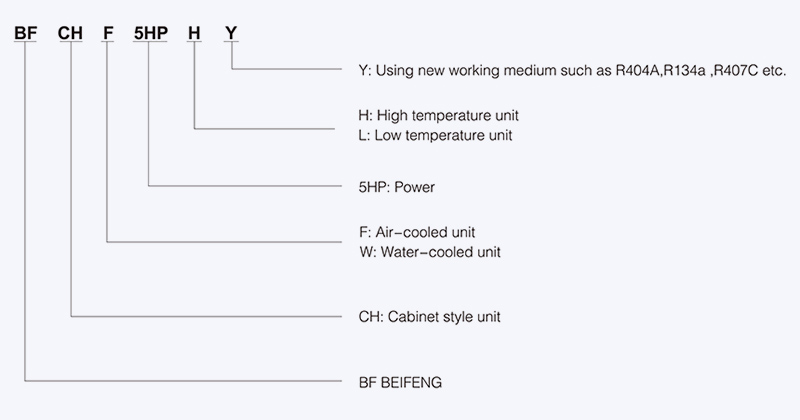

UNIT MODEL INSTRUCTION

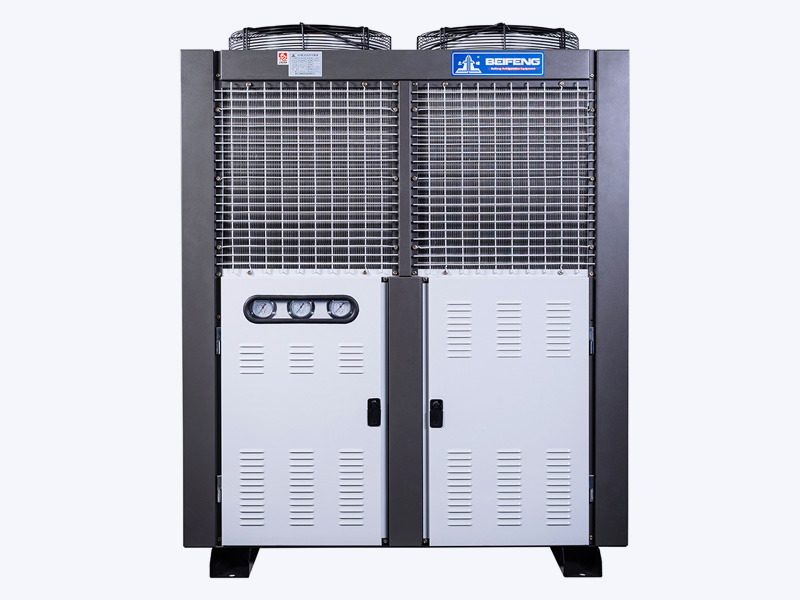

NEW CABINET-STYLE AIR-COOLED UNIT ( OUTDOORS )
Unit model |
Refrigerating capacity W |
Compressor |
air-cooled condenser |
overall |
Inlet diameter mm |
Outlet diameter mm |
|||||||||
Model |
Power Source |
Power KW |
Model |
Power Source |
Power KW |

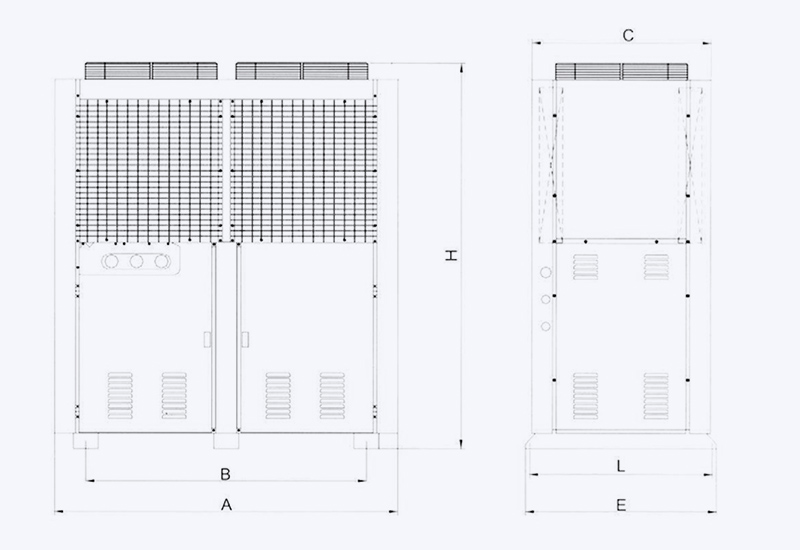

A |
B |
C |
E |
L |
H |
||||
BF-CHF-5HPH(Y) |
15010 |
BFBZ518H |
380V 50Hz 460V 60Hz |
5.1 |
NCH/0500 |
380V |
2x0.18 |
1150 |
850 |
585 |
676 |
630 |
1590 |
22 |
12 |
BF-CHF-8HPH(Y) |
22000 |
BFBZ827H |
380V 50Hz 460V 60Hz |
5.5 |
NCH/0750 |
380V |
2x0.45 |
1350 |
1050 |
685 |
776 |
730 |
1700 |
28 |
16 |
BF-CHF-IOHPH(Y) |
29360 |
BFBZ10 36H |
380V 50Hz 460V 60Hz |
9.6 |
NCH/1000 |
380V |
2x0.45 |
1350 |
1050 |
728 |
820 |
770 |
1700 |
28 |
16 |
BF-CHF-15HPH(Y) |
43080 |
BFBZ15 54H |
380V 50Hz 460V 60Hz |
12 |
NCH/1500 |
380V |
2x0.6 |
1650 |
1350 |
828 |
918 |
868 |
1910 |
35 |
16 |
BF-CHF-20HPH(Y) |
46790 |
BFBV20 56H |
380V 50Hz 460V 60Hz |
15 |
NCH/2000 |
380V |
2x0.78 |
1900 |
1600 |
928 |
1018 |
968 |
1960 |
42 |
19 |
BF-CHF-25HPH(Y) |
62750 |
BFBV25 73.7H |
380V 50Hz 460V 60Hz |
18 |
NCH/2500 |
380V |
3x0.6 |
2370 |
2130 |
928 |
1018 |
968 |
2110 |
42 |
22 |
BF-CHF-30HPH(Y) |
67850 |
BFBV30 84.5H |
380V 50Hz 460V 60Hz |
22 |
NCH/3000 |
380V |
3x0.78 |
2370 |
2130 |
928 |
1018 |
968 |
2110 |
42 |
22 |
BF-CHF-40HPH(Y) |
101500 |
BFBW40 126.8H |
380V 50Hz 460V 60Hz |
30 |
NCH/4000 |
380V |
4x0.6 |
3080 |
2840 |
928 |
1018 |
968 |
2110 |
54 |
28 |
BF-CHF-50HPH(Y) |
119870 |
BFBW50151.6H |
380V 50Hz 460V 60Hz |
37 |
NCH/5000 |
380V |
4x0.8 |
3480 |
3240 |
928 |
1018 |
968 |
2110 |
54 |
28 |
Working Conditions: Anbient temperature 32℃ evaporating temperature 5℃
