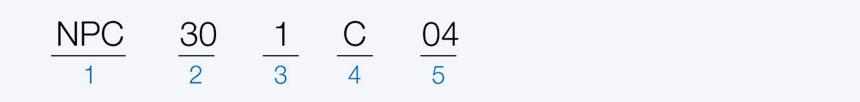

Nomenclature
1.Product Series: NPC-Commercial Type;NPH-Industrial Type2.Fan Size:
30:300mm; 40:400mm; 50:500mm; 63:630mm ; 80:800mm
3.Fan Quantity
4.Internal Code
5.Fin Spacing：04 is 4mm，06 is 6mm，07 is 7mm，10 is 9mm
Technical Specifications
Capacity is based upon standard EN328 as follows:
|
Operating mode |
SC1 |
SC2 |
SC3 |
SC4 |
SC5 |
|
Evap. temperature (Te) |
0 ℃ |
-8 ℃ |
-25 ℃ |
-31 ℃ |
-40 ℃ |
|
(Ta-Te)TD |
10K |
8K |
7K |
6K |
6K |
|
Evap. temperature |
10 ℃ |
0 ℃ |
-18 ℃ |
-25 ℃ |
-34 ℃ |
|
Superheat |
6.5 K |
5.2 K |
4.6 K |
3.9 K |
3.9 K |
|
RH |
85 % |
85 % |
95 % |
95 % |
95 % |
The performance parameters are based on ebm brand fan motor,and the air throw is for reference purpose only,the actual air throw wilbe affected by the arrangement of the evaporators or the placement of the goods.
Product Features
1、High efficiency staggered fin pattern design
2、Special sine wave fin design for better heat transfer
3、ternal grooved copper tube for higher heat exchanger efficiency
4、Specific fan motor for low temp, application, high air volume & air throw
5、Optimized air flow for unit cooler face area to reach max. capacity
6、ptimized circuiting design for refrigerant fully evaporating
7、Imported brand e-heaters applied for e-defrost type
8、Casing with white coating for corrosion protection
9、Robust，state-of-the-art sheet metal design and sscasing is available
10、Easy moving design of side cover for easy maintenance
11、 4-7mm fin Spacing optional for different application
12、Dual fin spacing design is available for minimize frost
13、 Specific unit cooler is available for special application
14、ual drain tray design to avoid water condensation
15、Hot gas defrost is available for coils of some models
16、Distributor support to avoid unexpected vibration
17、Special "Floating Tube" design for large unit cooler
18、Air jet for longer air throw is available for certain models Robust, state-of-the-art sheet metal design and SS casing is available

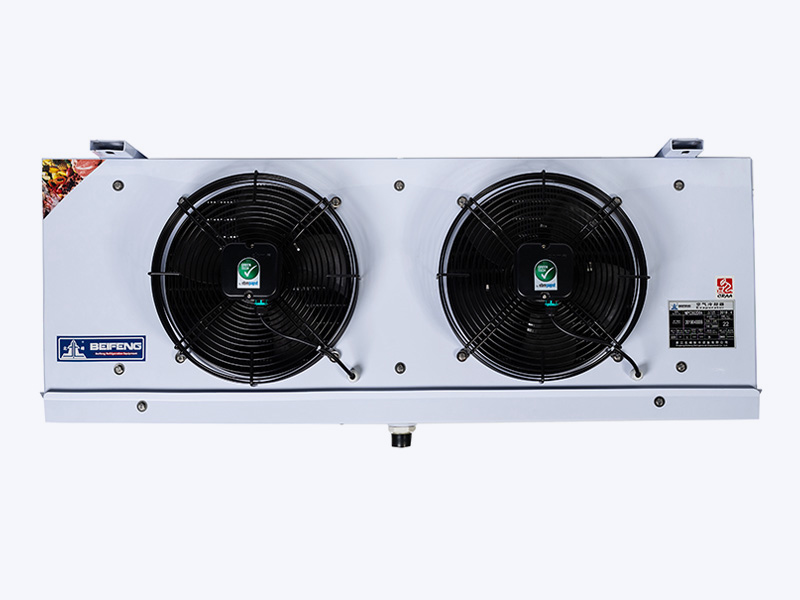

NPC Commercial Air-Cooler
Medium and High Temperature Ø300mm Fan Series
Fin Spacing ：4mm
|
Models |
301C04 |
301D04 |
302C04 |
302D04 |
302F04 |
|
|
SC2 Cooling Capacity KW |
Inlet Air 0℃ R404A |
2.0 |
2.5 |
4.0 |
5.0 |
5.8 |
| Evaporation -8℃ R22 |
2.0 |
2.4 |
4.0 |
4.9 |
5.7 |
|
|
SC1 Cooling Capacity KW |
Inlet Air 10℃ R404A |
2.7 |
3.4 |
5.5 |
6.9 |
8.2 |
| Evaporation -0℃ R22 |
2.7 |
3.4 |
5.5 |
6.9 |
8.2 |
|
|
Air Flow m³/h |
1500 |
1450 |
3000 |
2900 |
2500 |
|
|
Air Throw m |
7 |
6 |
8 |
7 |
6 |
|
|
Net Weight kg |
18 |
20 |
32 |
35 |
38 |
|
|
Fan Spec. |
1XØ300 |
1XØ300 |
2XØ300 |
2XØ300 |
2XØ300 |
|
|
Fan Mot. Ampere A |
0.22 |
0.22 |
0.44 |
0.44 |
0.44 |
|
|
Fan Mot.Power W |
68 |
68 |
136 |
136 |
136 |
|
|
Electric Defrost A |
2.3 |
4.5 |
4.5 |
4.5 |
9.1 |
|
|
Electric Defrost W |
1500 |
2500 |
3000 |
3000 |
5000 |
|
|
Inlet OD inch |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
|
|
Outlet OD inch |
5/8 |
5/8 |
5/8 |
5/8 |
5/8 |
|
Medium and High Temperature Ø300mm Fan Series
Fin Spacing ：4mm
|
Models |
303D04 |
303F04 |
304F04 |
|
|
SC2 Cooling Capacity KW |
Inlet Air 0℃ R404A |
7.3 |
8.4 |
10.4 |
| Evaporation -8℃ R22 |
7.3 |
8.4 |
10.4 |
|
|
SC1 Cooling Capacity KW |
Inlet Air 10℃ R404A |
10.2 |
11.9 |
14.9 |
| Evaporation -0℃ R22 |
10.2 |
12.0 |
15.0 |
|
|
Air Flow m³/h |
4350 |
3750 |
4720 |
|
|
Air Throw m |
8 |
7 |
9 |
|
|
Net Weight kg |
50 |
58 |
66 |
|
|
Fan Spec. |
3XØ300 |
3XØ300 |
4XØ300 |
|
|
Fan Mot. Ampere A |
0.66 |
0.66 |
0,88 |
|
|
Fan Mot.Power W |
204 |
204 |
272 |
|
|
Electric Defrost A |
5.5 |
10.9 |
13.6 |
|
|
Electric Defrost W |
3600 |
6000 |
7500 |
|
|
Inlet OD inch |
1/2 |
1/2 |
1/2 |
|
|
Outlet OD inch |
5/8 |
5/8 |
7/8 |
|
*The above performance parameters are based on ebm brand fan motor.
*meas shr comeceionwth metral lhe and ohaes ae △ comecion.
NPC Commercial Air-Cooler
Medium and High Temperature Ø400mm Fan SeriesFin Spacing ：4mm
|
Models |
401C04 |
401D04 |
401F04 |
402C04 |
402D04 |
402F04 |
|
|
SC2 Cooling Capacity KW |
Inlet Air 0℃ R404A |
3.7 |
4.5 |
5.4 |
7.4 |
9.0 |
10.5 |
| Evaporation-8℃ R22 |
3.6 |
4.3 |
5.2 |
7.3 |
8.9 |
10.6 |
|
|
SC1 Cooling Capacity KW |
Inlet Air 10℃ R404A |
5.0 |
6.1 |
7.7 |
10.0 |
12.3 |
14.9 |
| Evaporation -0℃ R22 |
4.9 |
6.1 |
7.5 |
9.9 |
12.2 |
15.0 |
|
|
Air Flow m³/h |
3000 |
2900 |
2550 |
6000 |
5800 |
5100 |
|
|
Air Throw m |
12 |
11 |
10 |
13 |
12 |
11 |
|
|
Net Weight kg |
31 |
32 |
35 |
47 |
50 |
57 |
|
|
Fan Spec. |
1XØ400 |
1XØ400 |
1XØ400 |
2XØ400 |
2XØ400 |
2XØ400 |
|
|
Fan Mot. Ampere A |
0.47 |
0.47 |
0.47 |
0.94 |
0.94 |
0.94 |
|
|
Fan Mot.Power W |
135 |
135 |
135 |
270 |
270 |
270 |
|
|
Electric Defrost A |
2.3 |
2.3 |
4.5 |
4.5 |
4.5 |
9.1 |
|
|
Electric Defrost W |
1500 |
1500 |
2500 |
3000 |
3000 |
5000 |
|
|
Inlet OD inch |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
5/8 |
|
|
Outlet OD inch |
5/8 |
5/8 |
5/8 |
5/8 |
5/8 |
7/8 |
|
Medium and High Temperature Ø400mm Fan Series
Fin Spacing ：4mm
|
Models |
403D04 | 403E04 | 403F04 | 404E04 | 404F04 | |
|
SC2 Cooling Capacity KW |
Inlet Air 0℃ R404A |
13.7 |
15.3 |
16.6 |
18.4 |
20.3 |
| Evaporation -8℃ R22 |
13.4 |
15.1 |
16.1 |
18.3 |
20.2 |
|
|
SC1 Cooling Capacity KW |
Inlet Air 10℃ R404A |
18.6 |
21.0 |
22.9 |
25.6 |
28.4 |
| Evaporation-0℃ R22 |
18.5 |
21.0 |
22.9 |
25.8 |
28.6 |
|
|
Air Flow m³/h |
8700 |
8100 |
7650 |
10200 |
9800 |
|
|
Air Throw m |
14 |
13 |
12 |
15 |
14 |
|
|
Net Weight kg |
69 |
74 |
79 |
92 |
97 |
|
|
Fan Spec. |
3XØ400 |
3XØ400 |
3XØ400 |
4XØ400 |
4XØ400 |
|
|
Fan Mot. Ampere A |
1.41 |
1.41 |
1.41 |
1.88 |
1.88 |
|
|
Fan Mot.Power W |
405 |
405 |
405 |
540 |
540 |
|
|
Electric Defrost A |
6.8 |
13.6 |
13.6 |
16.4 |
16.4 |
|
|
Electric Defrost W |
4500 |
7500 |
7500 |
9000 |
9000 |
|
|
Inlet OD inch |
5/8 |
7/8 |
7/8 |
7/8 |
7/8 |
|
|
Outlet OD inch |
7/8 |
1-1/8 |
1-1/8 |
1-1/8 |
1-1/8 |
|
*The above performance parameters are based on ebm brand fan motor.
*meas shr comeceionwth metral lhe and ohaes ae △ comecion.
NPC Commercial Air-Cooler
Medium and Low Temperature Ø300mm Fan Series
Fin Spacing ：6mm
|
Models |
301C06 | 301D06 | 302C06 | 302D06 | 302F06 | 303F06 | 304F06 | |
|
SC2 Cooling Capacity KW |
Inlet Air0℃ R404A |
1.7 |
2.1 |
3.4 |
4.3 |
5.3 |
7.8 |
9.6 |
| Evaporation -8℃ R22 |
1.7 |
2.0 |
3.4 |
4.1 |
5.1 |
7.5 |
9.6 |
|
|
SC3 Cooling Capacity KW |
Inlet Air-18℃ R404A |
1.1 |
1.4 |
2.4 |
2.9 |
3.7 |
5.3 |
6.5 |
| Evaporation-25℃ R22 |
1.1 |
1.4 |
2.3 |
2.9 |
3.7 |
5.2 |
6.4 |
|
|
SC4 Cooling Capacity KW |
Inlet Air -25℃ R404A |
0.8 |
1.1 |
1.7 |
2.3 |
2.8 |
4.0 |
5.0 |
| Evaporation -31℃ R22 |
0.8 |
1.1 |
1.8 |
2.3 |
2.7 |
4.1 |
5.0 |
|
|
Air Flow m³/h |
1550 |
1500 |
3100 |
3000 |
2800 |
4170 |
5200 |
|
|
Air Throw m |
8 |
7 |
9 |
8 |
7 |
8 |
10 |
|
|
Net Weight kg |
17 |
19 |
31 |
34 |
36 |
55 |
65 |
|
|
Fan Spec. |
1XØ300 |
1XØ300 |
2XØ300 |
2XØ300 |
2XØ300 |
3XØ300 |
4XØ300 |
|
|
Fan Mot. Ampere A |
0.22 |
0.22 |
0.44 |
0.44 |
0.44 |
0.66 |
0.88 |
|
|
Fan Mot.Power W |
68 |
68 |
136 |
136 |
136 |
204 |
272 |
|
|
Electric Defrost A |
2.3 |
2.3 |
3.6 |
3.6 |
7.3 |
10.9 |
13.6 |
|
|
Electric Defrost W |
1500 |
1500 |
2400 |
2400 |
4000 |
6000 |
7500 |
|
|
Inlet OD inch |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
|
|
Outlet OD inch |
5/8 |
5/8 |
5/8 |
5/8 |
5/8 |
5/8 |
7/8 |
|
Medium and Low Temperature Ø400mm Fan Series
Fin Spacing ：6mm
|
Models |
401C06 |
401F06 |
402C06 |
402D06 |
402F06 |
|
|
SC2 Cooling Capacity KW |
Inlet Air0℃ R404A |
3.2 |
4.9 |
6.4 |
7.9 |
9.9 |
| Evaporation -8℃ R22 |
3.0 |
4.9 |
6.2 |
7.7 |
9.9 |
|
|
SC3 Cooling Capacity KW |
Inlet Air -18℃ R404A |
2.1 |
3.2 |
4.3 |
5.3 |
6.6 |
| Evaporation -25℃ R22 |
2.1 |
3.2 |
4.3 |
5.3 |
6.6 |
|
|
SC4 Cooling Capacity KW |
Inlet Air -25℃ R404A |
1.7 |
2.5 |
3.4 |
4.1 |
5.0 |
| Evaporation -31℃ R22 |
1.7 |
2.5 |
3.3 |
4.1 |
5.1 |
|
|
Air Flow m³/h |
3200 |
2900 |
6400 |
6200 |
5800 |
|
|
Air Throw m |
13 |
11 |
14 |
13 |
12 |
|
|
Net Weight kg |
30 |
35 |
47 |
50 |
56 |
|
|
Fan Spec. |
1XØ400 |
1XØ400 |
2XØ400 |
2XØ400 |
2XØ400 |
|
|
Fan Mot. Ampere A |
0.47 |
0.47 |
0.94 |
0.94 |
0.94 |
|
|
Fan Mot.Power W |
135 |
135 |
270 |
270 |
270 |
|
|
Electric Defrost A |
2.3 |
4.5 |
4.5 |
4.5 |
9.1 |
|
|
Electric Defrost W |
1500 |
2500 |
3000 |
3000 |
5000 |
|
|
Inlet OD inch |
1/2 |
1/2 |
1/2 |
1/2 |
5/8 |
|
|
Outlet OD inch |
5/8 |
5/8 |
5/8 |
5/8 |
7/8 |
|
*The above performance parameters are based on ebm brand fan motor.
*meas shr comeceionwth metral lhe and ohaes ae △ comecion.
NPC Commercial Air-Cooler
Medium and Low Temperature Ø400mm Fan Series
Fin Spacing ：6mm
|
Models |
403D06 |
403E06 |
403F06 |
404F06 |
|
|
SC2 Cooling Capacity KW |
Inlet Air 0℃ R404A |
12.0 |
13.9 |
15.3 |
19.0 |
| Evaporation-8℃ R22 |
11.6 |
13.7 |
14.9 |
18.8 |
|
|
SC3 Cooling Capacity KW |
Inlet Air -18℃ R404A |
8.2 |
9.5 |
10.6 |
12.6 |
| Evaporation-25℃ R22 |
8.1 |
9.4 |
10.5 |
12.6 |
|
|
SC4 Cooling Capacity KW |
Inlet Air -25℃ R404A |
6.4 |
7.4 |
8.3 |
9.7 |
| Evaporation-31℃ R22 |
6.3 |
7.3 |
8.3 |
9.8 |
|
|
Air Flow m³/h |
9300 |
9000 |
8700 |
11000 |
|
|
Air Throw m |
15 |
14 |
13 |
15 |
|
|
Net Weight kg |
69 |
74 |
79 |
100 |
|
|
Fan Spec. |
3XØ400 |
3XØ400 |
3XØ400 |
4XØ400 |
|
|
Fan Mot. Ampere A |
1.41 |
1.41 |
1.41 |
1.88 |
|
|
Fan Mot.Power W |
405 |
405 |
405 |
540 |
|
|
Electric Defrost A |
6.8 |
13.6 |
13.6 |
16.4 |
|
|
Electric Defrost W |
4500 |
7500 |
7500 |
9000 |
|
|
Inlet OD inch |
5/8 |
7/8 |
7/8 |
7/8 |
|
|
Outlet OD inch |
7/8 |
1-1/8 |
1-1/8 |
1-1/8 |
|
*The above performance parameters are based on ebm brand fan motor.The above performance parameters are based on ebm brand fan motor.
*meas shr comeceionwth metral lhe and ohaes ae △ comecion.Y meas shr comeceionwth metral lhe and ohaes ae △ comecion.
NPI Industrial Evaporator
Medium and High Temperature Series
Fin Spacing ：4mm
|
Models |
502D04 | 502F04 | 502H04 | 503F04 | 503H04 | 504F04 | 504H04 | 632F04 | 632H04 | |
|
SC2 Cooling Capacity KW |
Inlet Air 0℃ R404A |
20.0 |
25.3 |
28.3 |
36.7 |
41.3 |
55.1 |
49.5 |
46.96 |
52 |
| Evaporation -8℃ R22 |
20.0 |
25.3 |
28.5 |
37.0 |
41.8 |
54.1 |
54.1 |
47.11 |
52.31 | |
|
SC1 Cooling Capacity KW |
Inlet Air 10℃ R404A |
27.4 |
35.1 |
40.0 |
51.6 |
58.9 |
77.2 |
77.2 |
66.15 |
73.79 |
| Evaporation -0℃ R22 |
27.7 |
35.6 |
40.7 |
52.5 |
60.1 |
68.7 |
78 |
66.74 |
74.87 |
|
|
Air Flow m³/h |
14200 |
12800 |
11600 |
19200 |
17400 |
24400 |
20000 |
24500 |
22000 |
|
|
Air Throw m |
22 |
21 |
20 |
22 |
21 |
23 |
22 |
27 |
24 |
|
|
Net Weight kg |
158 |
178 |
198 |
254 |
285 |
320 |
355 |
243 |
288 |
|
|
Fan Spec. |
2XØ500 |
2XØ500 |
2XØ500 |
3XØ500 |
3XØ500 |
4XØ500 |
4XØ500 |
4XØ630 |
4XØ630 |
|
|
Fan Mot. Ampere A |
3.0 |
3.0 |
3.0 |
4.5 |
4.5 |
6.0 |
6.0 |
9.56 |
9.56 |
|
|
Fan Mot.Power W |
1640 |
1640 |
1640 |
2460 |
2460 |
3280 |
3280 |
5260 |
5260 |
|
|
Electric Defrost A |
13.6 |
13.6 |
13.6 |
22.6 |
22.6 |
28.4 |
28.4 |
17.3 |
20.2 |
|
|
Electric Defrost W |
9000 |
9000 |
9000 |
12900 |
12900 |
16200 |
16200 |
11400 |
13300 |
|
|
Inlet OD inch |
5/8 |
5/8 |
7/8 |
7/8 |
7/8 |
1-1/8 |
1-1/8 |
1-1/8 |
1-1/8 |
|
|
Outlet OD inch |
1-3/8 |
1-3/8 |
1-5/8 |
1-5/8 |
1-5/8 |
2-1/8 |
2-1/8 |
2-1/8 |
2-1/8 |
|
|
Models |
633F04 |
633H04 | 634F04 |
634H04 |
635H04 | 802F04 | 802H04 | 803F04 | 803H04 | |
|
SC2 Cooling Capacity KW |
Inlet Air0℃ R404A |
71.38 |
78.98 |
82.87 |
91.66 |
104.73 |
73.83 |
79.92 |
84.77 |
92.95 |
| Evaporation -8℃ R22 |
71.3 |
79.01 |
83.99 |
92.67 |
107.86 |
73.74 |
74.65 |
85.11 |
93.43 |
|
|
SC1 Cooling Capacity KW |
Inlet Air 10℃ R404A |
100.28 |
111.76 |
117.83 |
130.92 |
151.52 |
104.21 |
109.74 |
120.04 |
133.87 |
| Evaporation-0℃ R22 |
100.9 |
112.86 |
119.75 |
133.16 |
156.13 |
105.13 |
109.74 |
121.36 |
136.87 |
|
|
Air Flow m³/h |
36500 |
33000 |
46000 |
40000 |
50000 |
32500 |
28000 |
40500 |
37000 |
|
|
Air Throw m |
28 |
25 |
28 |
25 |
25 |
25 |
25 |
25 |
25 |
|
|
Net Weight kg |
330 |
400 |
396 |
479 |
530 |
342 |
410 |
384 |
440 |
|
|
Fan Spec. |
3XØ630 |
3XØ630 |
4XØ630 |
4XØ630 |
5XØ630 |
2XØ800 |
2XØ800 |
3XØ800 |
3XØ800 |
|
|
Fan Mot. Ampere A |
14.3 |
14.3 |
19.1 |
19.1 |
23.8 |
7.8 |
7.8 |
11.7 |
11.7 |
|
|
Fan Mot.Power W |
7890 |
7890 |
10520 |
10520 |
13150 |
3880 |
3880 |
5820 |
5820 |
|
|
Electric Defrost A |
26 |
30.3 |
30.9 |
36.1 |
40 |
37.9 |
37.9 |
43.9 |
43.9 |
|
|
Electric Defrost W |
17160 |
20020 |
2Ø400 |
23800 |
26400 |
25000 |
25000 |
29000 |
29000 |
|
|
Inlet OD inch |
1-1/8 |
1-1/8 |
1-1/8 |
1-1/8 |
1-1/8 |
1-1/8 |
1-1/8 |
1-1/8 |
1-1/8 |
|
|
Outlet OD inch |
2-1/8 |
2-1/8 |
2-1/8 |
2-1/8 |
2-1/8 |
2-1/8 |
2-1/8 |
2-1/8 |
2-1/8 |
|
*The above performance parameters are based on ebm brand fan motor.
*meas shr comeceionwth metral lhe and ohaes ae △ comecion.
NPI Industrial Evaporator
Medium and Low Temperature Series
Fin Spacing ：7mm
|
Models |
502D07 | 502F07 | 502H07 | 503F07 | 503H07 | 504F07 | 504H07 | 632F07 | 632H07 | |
|
SC2 Cooling Capacity KW |
Inlet Air 0℃ R404A |
17.0 |
22.0 |
25.1 |
32.2 |
36.9 |
42.9 |
48.7 |
40.3 |
47.1 |
| Evaporation -8℃ R22 |
17.0 |
22.0 |
23.4 |
32.4 |
37.1 |
42.5 |
46.0 |
40.3 |
47.1 |
|
|
SC3 Cooling Capacity KW |
Inlet Air -18℃ R404A |
11.0 |
14.5 |
17.0 |
21.0 |
24.3 |
29.0 |
33.7 |
26.2 |
31.1 |
| Evaporation -25℃ R22 |
11.3 |
14.8 |
17.2 |
21.5 |
24.9 |
29.2 |
33.8 |
26.6 |
31.5 |
|
|
Air Flow m³/h |
15000 |
13600 |
12400 |
2Ø400 |
18600 |
26000 |
23800 |
27000 |
25000 |
|
|
Air Throw m |
24 |
23 |
22 |
24 |
23 |
25 |
24 |
28 |
25 |
|
|
Net Weight kg |
157 |
175 |
195 |
250 |
280 |
315 |
350 |
240 |
286 |
|
|
Fan Spec. |
2XØ500 |
2XØ500 |
2XØ500 |
3XØ500 |
3XØ500 |
4XØ500 |
2XØ500 |
2XØ630 |
2XØ630 |
|
|
Fan Mot. Ampere A |
3.0 |
3.0 |
3.0 |
4.5 |
4.5 |
6.0 |
6 |
9.56 |
9.56 |
|
|
Fan Mot.Power W |
1640 |
1640 |
1640 |
2460 |
2460 |
3280 |
3280 |
5260 |
5260 |
|
|
Electric Defrost A |
13.6 |
13.6 |
13.6 |
22.6 |
22.6 |
28.4 |
28.4 |
17.7 |
20.8 |
|
|
Electric Defrost W |
9000 |
9000 |
9000 |
12900 |
12900 |
16200 |
16200 |
11700 |
13700 |
|
|
Inlet OD inch |
5/8 |
5/8 |
7/8 |
7/8 |
7/8 |
1-1/8 |
1-1/8 |
1-1/8 |
1-1/8 |
|
|
Outlet OD inch |
1-3/8 |
1-3/8 |
1-5/8 |
1-5/8 |
1-5/8 |
2-1/8 |
2-1/8 |
2-1/8 |
2-1/8 |
|
|
Models |
633F07 | 633H07 | 634F07 | 634H07 | 635H07 | 802F07 | 802H07 | 803F07 | 803H07 | |
|
SC2 Cooling Capacity KW |
Inlet Air 0℃ R404A |
61.5 |
71.4 |
72.3 |
83.7 |
98.7 |
60.72 |
67.12 |
72.18 |
81.37 |
| Evaporation -8℃ R22 |
61.1 |
71.1 |
72.8 |
84.2 |
96.5 |
54.85 |
58.92 |
71.95 |
75.62 |
|
|
SC3Cooling Capacity KW |
Inlet Air -18℃ R404A |
40.1 |
47.6 |
45.8 |
54.2 |
60.1 |
41.3 |
47.2 |
47.58 |
54.67 |
| Evaporation-25℃ R22 |
40.6 |
47.9 |
46.6 |
55.2 |
61.97 |
41.39 |
48.09 |
48.34 |
55.35 |
|
|
Air Flow m³/h |
40500 |
37500 |
51000 |
46000 |
57500 |
35500 |
32500 |
45000 |
40500 |
|
|
Air Throw m |
28 |
26 |
28 |
26 |
25 |
25 |
25 |
25 |
25 |
|
|
Net Weight kg |
325 |
393 |
389 |
470 |
530 |
342 |
410 |
384 |
440 |
|
|
Fan Spec. |
3XØ630 |
3XØ630 |
3XØ630 |
3XØ630 |
3XØ630 |
3XØ800 |
3XØ800 |
3XØ800 |
3XØ800 |
|
|
Fan Mot. Ampere A |
14.34 |
14.34 |
19.12 |
19.12 |
23.8 |
7.8 |
7.8 |
11.8 |
11.8 |
|
|
Fan Mot.Power W |
7890 |
7890 |
10520 |
10520 |
13150 |
3880 |
3880 | 5820 |
5820 |
|
|
Electric Defrost A |
26 |
30.3 |
30.9 |
36.1 |
44.5 |
37.9 |
37.9 |
43.9 |
43.9 |
|
|
Electric Defrost W |
17160 |
20000 |
2Ø400 |
23800 |
29400 |
25000 |
25000 |
29000 |
29000 |
|
|
Inlet OD inch |
1-1/8 |
1-1/8 |
1-1/8 |
1-1/8 |
1-1/8 |
1-1/8 |
1-1/8 |
1-1/8 |
1-1/8 |
|
|
Outlet OD inch |
2-1/8 |
2-1/8 |
2-1/8 |
2-1/8 |
2-1/8 |
2-1/8 |
2-1/8 |
2-1/8 |
2-1/8 |
|
*The above performance parameters are based on ebm brand fan motor.
*meas shr comeceionwth metral lhe and ohaes ae △ comecion.
NPI Industrial Evaporator
Low Temperature Series
Fin Spacing：9mm
|
Models |
502F10 | 503F10 | 503H10 | 504F10 | 504H10 | 632F10 | 632H10 | 633F10 | |
|
SC4 Cooling Capacity KW |
Inlet Air -25℃ R404A |
10.2 |
14.8 |
17.8 |
20.5 |
24.3 |
18.3 |
22.5 |
28.1 |
| Evaporation -31℃ R22 |
10.4 |
15.1 |
18.1 |
20.6 |
24.5 |
18.6 |
22.9 |
28.4 |
|
|
SC5 Cooling Capacity KW |
Inlet Air-34℃ R404A |
8.2 |
11.5 |
13.9 |
16.8 |
20.6 |
17.7 |
21.7 |
23 |
| Evaporation -40℃ R22 |
8.6 |
12.3 |
14.9 |
17.5 |
21.2 |
17.6 |
21.5 |
23.4 |
|
|
Air Flow m³/h |
13800 |
20700 |
18900 |
26800 |
24200 |
27600 |
25400 |
41400 |
|
|
Air Throw m |
24 |
25 |
24 |
26 |
25 |
27 |
24 |
28 |
|
|
Net Weight kg |
174 |
248 |
278 |
313 |
348 |
246 |
285 |
330 |
|
|
Fan Spec. |
2XØ500 |
3XØ500 |
3XØ500 |
4XØ500 |
4XØ500 |
2XØ630 |
2XØ630 |
3XØ630 |
|
|
Fan Mot. Ampere A |
3.0 |
4.5 |
4.5 |
6.0 |
6.0 |
9.56 |
9.56 |
14.3 |
|
|
Fan Mot.Power W |
1640 |
2460 |
2460 |
3280 |
3280 |
5260 |
5260 |
7890 |
|
|
Electric Defrost A |
13.6 |
22.6 |
22.6 |
28.4 |
42.6 |
17.3 |
20.2 |
26 |
|
|
Electric Defrost W |
9000 |
12900 |
12900 |
16200 |
24300 |
11400 |
13300 |
17160 |
|
|
Inlet OD inch |
5/8 |
7/8 |
7/8 |
1-1/8 |
1-1/8 |
1-1/8 |
1-1/8 |
1-1/8 |
|
|
Outlet OD inch |
1-3/8 |
1-5/8 |
1-5/8 |
2-1/8 |
2-1/8 |
2-1/8 |
2-1/8 |
2-1/8 |
|
|
Models |
633H10 | 633F10 | 634H10 | 635F10 | 802F10 | 802H10 | 803F10 | 803H10 | |
|
SC4 Cooling Capacity KW |
Inlet Air -25℃ R404A |
34.4 |
31.22 |
39.4 |
43.4 |
23.59 |
28.97 |
33.24 |
39.87 |
| Evaporation -31℃ R22 |
34.7 |
32.29 |
40 |
44.7 |
24.91 |
30.42 |
33.79 |
40.46 |
|
|
SC5 Cooling Capacity KW |
Inlet Air-34℃ R404A |
28.3 |
23.83 |
31.5 |
33.2 |
17.78 |
22.19 |
26.47 |
32.26 |
| Evaporation -40℃ R22 |
29 |
25.66 |
32.1 |
34.4 |
19.56 |
24.27 |
27.81 |
33.89 |
|
|
Air Flow m³/h |
38100 |
52000 |
47200 |
59000 |
36000 |
33000 |
45600 |
41100 |
|
|
Air Throw m |
25 |
28 |
25 |
25 |
25 |
25 |
25 |
25 |
|
|
Net Weight kg |
400 |
396 |
479 |
530 |
342 |
410 |
384 |
440 |
|
|
Fan Spec. |
3XØ630 |
4XØ630 |
4XØ630 |
5XØ630 |
2XØ800 |
2XØ800 |
3XØ800 |
3XØ800 |
|
|
Fan Mot. Ampere A |
14.3 |
19.1 |
19.1 |
23.8 |
7.8 |
7.8 |
11.8 |
11.8 |
|
|
Fan Mot.Power W |
7890 |
10520 |
10520 |
13150 |
3880 |
3880 |
5820 |
5820 |
|
|
Electric Defrost A |
30.3 |
30.9 |
36.1 |
40 |
37.9 |
37.9 |
43.9 |
43.9 |
|
|
Electric Defrost W |
20020 |
2Ø400 |
23800 |
26400 |
25000 |
25000 |
29000 |
29000 |
|
|
Inlet OD inch |
1-1/8 |
1-1/8 |
1-1/8 |
1-1/8 |
1-1/8 |
1-1/8 |
1-1/8 |
1-1/8 |
|
|
Outlet OD inch |
2-1/8 |
2-1/8 |
2-1/8 |
2-1/8 |
2-1/8 |
2-1/8 |
2-1/8 |
2-1/8 |
|
*The above performance parameters are based on ebm brand fan motor.
*meas shr comeceionwth metral lhe and ohaes ae △ comecion.

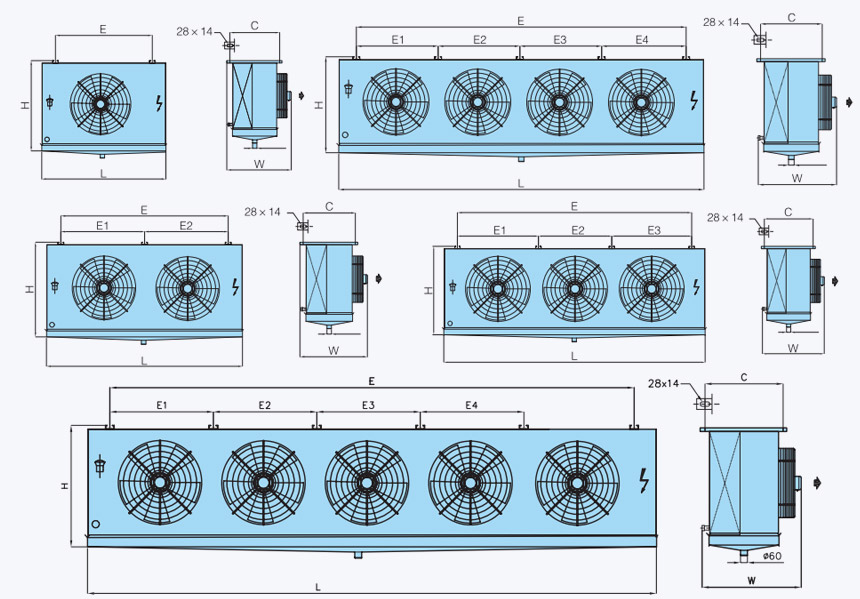

Evaporator Dimension
| Models | Dimension ( mm) | Drain Size | ||||
|
L |
H |
W |
C |
E |
||
|
NPC301 |
730 |
450 |
500 |
390 |
477 |
Ø32 |
|
NPC302 |
1180 |
450 |
500 |
390 |
930 |
Ø32 |
|
NPC303 |
1600 |
450 |
500 |
390 |
1347 |
Ø32 |
|
NPC304 |
1900 |
450 |
500 |
390 |
1647 |
Ø32 |
|
NPC401 |
815 |
570 |
550 |
450 |
565 |
Ø32 |
|
NPC402 |
1355 |
570 |
550 |
450 |
1105 |
Ø32 |
|
NPC403 |
1895 |
570 |
550 |
450 |
1645 |
Ø48 |
|
NPC404 |
2255 |
570 |
550 |
450 |
2005 |
Ø48 |
| Models | Dimension ( mm) | Drain Size | ||||
|
L |
H |
W |
C |
E |
||
|
NPI502 |
1990 |
850 |
700 |
590 |
1647 |
Ø48 |
|
NPI503 |
2770 |
850 |
700 |
590 |
2427 |
Ø48 |
|
NPI504 |
3375 |
850 |
700 |
590 |
3027 |
Ø48 |
|
NPI632 |
2400 |
1000 |
720 |
590 |
2050 |
Ø60 |
|
NPI633 |
3400 |
1000 |
720 |
590 |
3050 |
Ø60 |
|
NPI634 |
4000 |
1000 |
720 |
590 |
3650 |
Ø60 |
|
NPI635 |
4900 |
1000 |
720 |
590 |
4550 |
Ø60 |
|
NPI802 |
3310 |
1235 |
850 |
690 |
2952 |
Ø60 |
|
NPI803 |
3760 |
1235 |
850 |
690 |
3300 |
Ø60 |
Evaporator Dimension
If you have any questions or need help, please contact us directly, we will provide you with online help and services in time.
.jpg?imageView2/2/w/300/h/300/format/jp2/q/75 "Aluminium Fin Evaporator")
.jpg?imageView2/2/w/300/h/300/format/jp2/q/75 "Supermarket and C-store Medium Temp/Low Temp Fixed Speed Condensing Unit")
Professional refrigeration equipment manufacturer
Zhejiang Beifeng Refrigeration Equipment Co., Ltd. has 35 years history of manufacturing refrigeration equipment. Currently, it has two processing bases located in Shengzhou, Zhejiang, with a production building of 60,000 square meters. It has set up three sales companies in Shanghai, Beijing, and Guangzhou, with strong technical force, advanced equipment, complete varieties and stable quality. The company has a high-quality inspection center to detect the performance index of refrigeration products and imported vacuum-type helium leak detectors for condensers and evaporators. It has a great influence in the national refrigeration industry and occupies a large market, with distributors in all major cities; It enjoys a high reputation not only in the domestic market, but also in the overseas market, and the products are exported to Europe, Southeast Asia, the Middle East, North America, Africa, etc.
In the refrigeration process, the fair design of the condenser is an important part of improving the energy efficiency r...
In industrial air conditioning refrigeration systems, evaporators, condensers, compressors and throttle valves are four ...
Different condensers according to steam condensation can be divided into surface type (also called partition type) and m...
Air coolers can be used for cooling or condensation, and are widely used in: refining, condensation of petrochemical ove...
In summer, the compressor's exhaust temperature is relatively high and the hand cannot touch it. According to national s...
An air cooler is a heat exchanger that uses air as a cooling medium to cool a warm stream to a desired temperature. Refe...
Copyright © Zhejiang Beifeng Refrigeration Equipment Co.,Ltd.All Rights Reserved. Custom Refrigeration Equipment Manufacturers
English
عربى
简体中文
