Product brief introduction:
BF-CU series outdoor condensing unit Apply to all kinds of high,Temperature of the cold storage, the Display ark，storage,Industrial equipment, etc.According to industry within Different customers,Points 3 kinds of products The BF-CUA ordinary series,The BF-efficient series, don The BF-CUC ejector wind series.BEIFENG company Use the professional research and development， Design team.Coda production equipment,Modern test equipment Ensure that the product high price.

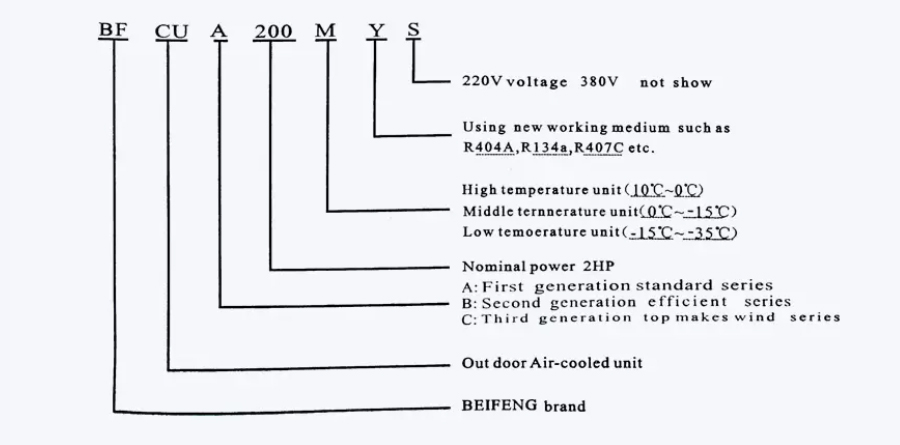

UNIT MODEL INSTRU CTION
Product features:
1、Reasonable design, be applicable to the outdoor installation.
2、Adopts 6 pole motor, the better to reduce noise
3、Three, in and out pipe installation stop valve, facilitate internal system is maintenance.
BF-CUA series outdoor-cooled condensing unit capacity
R22/R404A
|
Condensing Unit Mode1 |
Arab Temp ℃ |
↓ |
Capacity(watt) |
||||||||
|
Evaporating temperature (℃) |
|||||||||||
|
-25 |
-20 |
-15 |
-10 |
-5 |
0 |
5 |
7.2 |
10 |
|||
|
BF-CUA200M MLM015T4 |
32 |
QO |
|
|
2779 |
3430 |
4038 |
4704 |
5416 |
5767 |
6213 |
|
38 |
|
|
|
3222 |
3836 |
4410 |
5131 |
5466 |
5891 |
||
|
43 |
|
|
|
|
3635 |
4116 |
4846 |
5164 |
5569 |
||
|
BF-CUA200MY MLZ015T4 |
32 |
QO |
1905 |
2352 |
2876 |
3549 |
4178 |
4865 |
5743 |
5964 |
6430 |
|
38 |
1515 |
2033 |
2623 |
3270 |
3894 |
4475 |
5207 |
5548 |
5979 |
||
|
43 |
|
1750 |
2207 |
2702 |
3525 |
3992 |
4701 |
5008 |
5401 |
||
|
BF-Cl A300M MLM021T4 |
32 |
QO |
|
|
4062 |
4828 |
5701 |
6665 |
7709 |
8214 |
8858 |
|
38 |
|
|
|
4469 |
5398 |
6323 |
7328 |
7799 |
8447 |
||
|
43 |
|
|
|
|
5095 |
5979 |
6948 |
7383 |
7987 |
||
|
BF-CUA300MY MLZ021I4 |
32 |
QO |
3020 |
3593 |
4402 |
5192 |
6093 |
7087 |
8166 |
8689 |
9355 |
|
38 |
2684 |
3265 |
3959 |
4783 |
5576 |
6463 |
7532 |
8009 |
8617 |
||
|
43 |
|
2728 |
3491 |
4293 |
5095 |
5857 |
6798 |
7220 |
7757 |
||
|
RF-CUA400M MLM030T4 |
32 |
QO |
|
|
5826 |
7067 |
8430 |
9946 |
11498 |
12210 |
13117 |
|
38 |
|
|
|
6651 |
7976 |
9407 |
10927 |
11627 |
12519 |
||
|
43 |
|
|
|
|
7521 |
8868 |
10357 |
11045 |
11920 |
||
|
BF-CUA400MY VILZ030T4 |
32 |
QO |
4417 |
5281 |
6030 |
7314 |
8725 |
10293 |
11899 |
12637 |
13575 |
|
38 |
3798 |
4682 |
5666 |
6751 |
8095 |
9350 |
10794 |
11801 |
12706 |
||
|
43 |
|
4350 |
5238 |
6132 |
7296 |
8502 |
9947 |
10714 |
11562 |
||
|
BF-CIA500M MLM038.M |
32 |
QO |
|
|
6545 |
8118 |
9896 |
11759 |
13540 |
14347 |
15373 |
|
38 |
|
|
|
7503 |
9292 |
10973 |
12923 |
13478 |
14438 |
||
|
43 |
|
|
|
|
8787 |
10286 |
12206 |
12907 |
13801 |
||
|
BF-CIA500MY MI.Z038T4 |
32 |
QO |
5216 |
6200 |
7278 |
8905 |
10542 |
12170 |
14014 |
14849 |
15910 |
|
38 |
4626 |
5600 |
6745 |
8115 |
9632 |
11338 |
13116 |
13881 |
14855 |
||
|
43 |
|
5117 |
6200 |
7475 |
8715 |
10265 |
11936 |
12615 |
13482 |
||
|
BF-CUA600M MLM045T4 |
32 |
QO |
|
|
7849 |
9660 |
11661 |
13865 |
16201 |
17233 |
18548 |
|
38 |
|
|
|
9032 |
11003 |
13033 |
15298 |
16303 |
17582 |
||
|
43 |
|
|
|
|
10443 |
12199 |
14495 |
15372 |
16615 |
||
|
BF-CUA600MY MLZ045T4 |
32 |
QO |
6176 |
7325 |
8859 |
10571 |
12465 |
14251 |
16866 |
.17935 |
19295 |
|
38 |
5697 |
6836 |
8131 |
9658 |
11265 |
13228 |
15527 |
16547 |
17845 |
||
|
43 |
|
6206 |
7537 |
8717 |
10238 |
11932 |
14062 |
15009 |
16215 |
||
Note:Rated condition:50HZ, Gas return temp. 20℃,The liquid is supercooled
technological parameter
|
Outdoor unit |
Compressor |
Air volume(m³/h) |

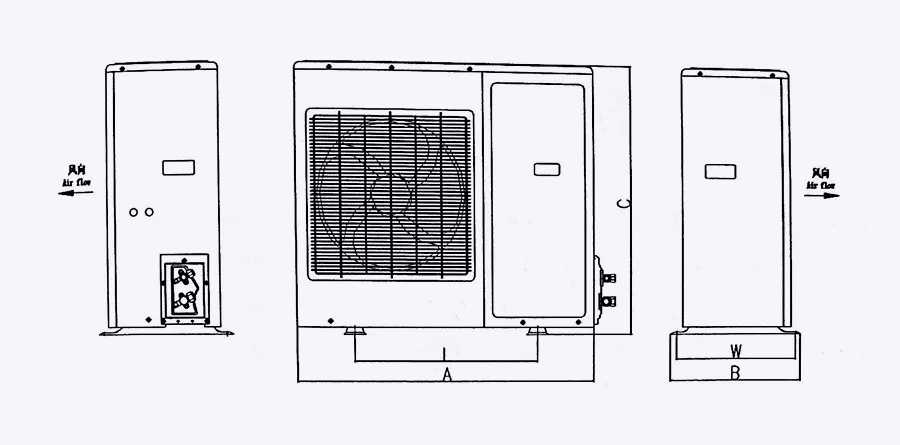

A×B×C External dim(mm) |
L×W Mount dim(mm) |
Conned pipe(inch) |
|||
|
Model |
voltage(V) |
Dlspiac ement(m³/h) |
||||||
|
outlet |
Inlet |
|||||||
|
BF-CUA200M BK-CUA200MY |
MLMZ015T4 |
380/3/50 |
5.9 |
1×3420 |
950×355×840 |
580×390 |
3/8" |
5/8" |
|
BF-CUA300M BF-CUA300MY |
MLM/MLZ021T4 |
380/3/50 |
8 |
1×3420 |
950×355×840 |
580×390 |
3/8" |
5/8" |
|
BF-CUA400M BF-CUA400MY |
MLM/MI.Z030T4 |
380/3/50 |
12 |
1×3420 |
950×355×940 |
580×390 |
3/8" |
5/8" |
|
BF-CUA500M BF-CUA500MY |
MLM/MLZ038T4 |
380/3/50 |
14.1 |
2×3420 |
950×355×1245 |
580×390 |
1/2" |
3/4" |
|
BF-CUA600M BF-CUA600MY |
MLM/MLZ045T4 |
380/3/50 |
17.2 |
2×3420 |
950×355×1245 |
580×390 |
1/2" |
3/4" |
|
BF-CUB100MS BF-CUB100MYS BF-CUB100JYS |
CAJ9510T CAJ9510Z CAJ2446Z |
220/1/50 |
18.3 18.3 26.15 |
1×1590 |
1050×370×590 |
730×340 |
3/8" |
5/8" |
|
BF-CUB150MS BF-CUB150MYS BF-CUB150JYS |
CAJ9519T CAJ9519Z CAJ2464Z |
220/1/50 |
34. 45 31. 45 34.45 |
1×2490 |
1050×370×590 |
730×340 |
3/8" |
5/8" |
|
BF-CUB200M BF-CUB200MY BF-CUB200JY |
TFH4524F TFH4524Z TFH2480Z |
380/3/50 |
43. 5 43.5 53.2 |
1×2490 |
1100×370×640 |
780×340 |
3/8" |
5/8" |
|
BF-CUB300M BF-OJB300MY BF-OJB300JY |
TFH4540F TfH4540Z TFH2511Z |
380/3/50 |
74. 25 74.25 74.25 |
1×3520 |
1100 × 370 × 640 |
780×340 |
3/8" |
5/8" |
|
BF-CUB400M BF-CUB400MY BF-CUB400JY |
TAG4546T TAG4546Z TAG2516Z |
380/3/50 |
90.2 112.5 112.5 |
1×3520 |
1100×420×690 |
780×390 |
1/2" |
3/4" |
|
BF-CUB500M BF-CUB500MY BF-CUB500JY |
TAG4561T TAG4561Z TAG2522Z |
380/3/50 |
112.5 134.4 |
2×3520 |
1100×420×1245 |
780×390 |
1/2" |
3/4" |
|
BF-CUB600M BF-CUB600MY |
TAG4568T TAG4568Z |
380/3/50 |
124.4 124.4 |
2× 3520 |
1100×420×1245 |
780×390 |
1/2， |
3/4" |
|
BF-CUC500M BF-CUC500MY |
MLM/MLZ038T4 |
380/3/50 |
14. 1 |
1×6570 |
820×750×765 |
550×720 |
1/2" |
3/4" |
|
BF-CUC600M 15F-CUC600MY |
MLM/MLZ045T4 |
380/3/50 |
17.2 |
1×6570 |
820×750×765 |
550×720 |
1/2" |
3/4" |
|
BF-CUC700M BF-OJC700MY |
MLM/MLZ048T4 |
380/3,'50 |
18.7 |
1×8750 |
820×750×765 |
550×720 |
1/2" |
3/4" |
|
BF-CUC800M BF-CUC800MY |
MLM/MLZ058T4 |
380/3/50 |
21.9 |
I× 8750 |
970×750×865 |
700×720 |
5/8" |
.1-1/8" |
|
BF-CUC9M BF-01C900MY |
MLM/MLZ066T4 |
380/3/50 |
25.9 |
2×6570 |
1360×750×865 |
1150×720 |
5/8" |
1-1/8" |
|
BF-CUC1000M BF-CUC1000MY |
MLM/MZ076T4 |
380/3/50 |
28.3 |
2×6570 |
1360×750×865 |
1150×720 |
5/8" |
1-1/8" |

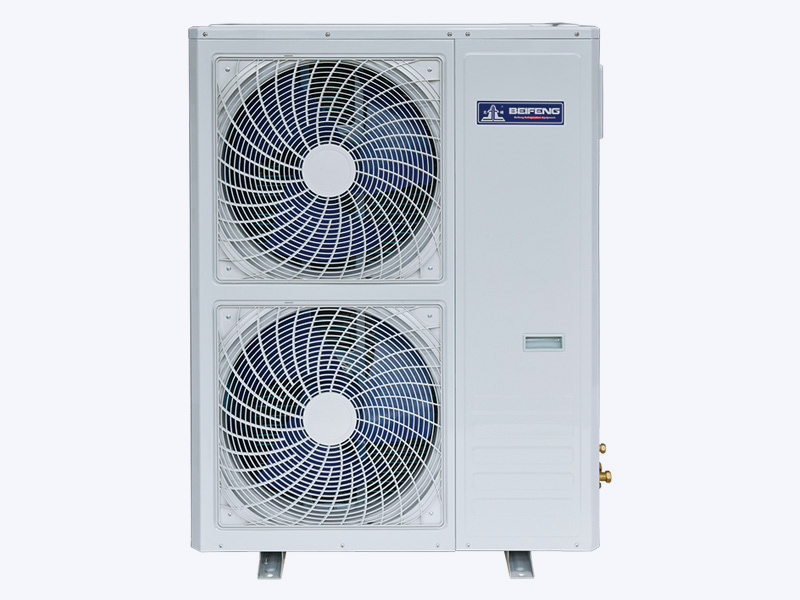

BF-CUA SERIES OUTDOOR COOLED CONDENSING UNIT
Zhejiang Beifeng Refrigeration Equipment Co., Ltd is a famous China Double Vent Model L CUA Box-Type Units Factory and Double Vent Model L CUA Box-Type Units Company,and the products are exported to the Europe，South East Asia，Middle East，North America，Africa etc.
If you have any questions or need help, please contact us directly, we will provide you with online help and services in time.
