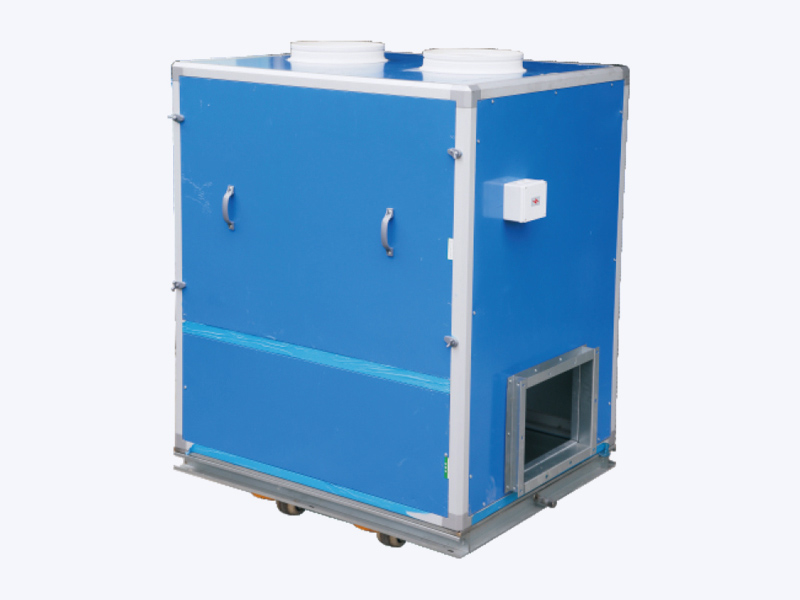

The product can be widely used in edible mushroom that requires refrigerated warehouse ventilation, built-in heat exchanger energy recovery efficiency is 60% higher than that in the constant temperature of refrigerated warehouse, greatly reducing the fresh air energy required to achieve high efficiency and energy saving.

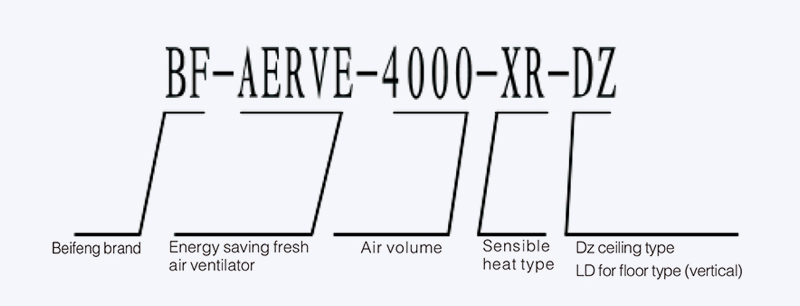

Model marker
Performance parameter
|
Model |
Rated air flow(m³/h) |
External hydrostatic pressure(Pa) |
Heat recovery rate % |
Noise db(A) |
Power |
Rated current A |
Installed power W |
Netweight kg |
|||||
|
High |
Low |
High |
Low |
High |
Low |
High |
Low |
High |
Low |
||||
|
BF-AERVE-1000-XR |
1000 |
170 |
60 |
63 |
3N-380V-50HZ |
0.86 |
500 |
150 |
|||||
|
BF-AERVE-1500-XR |
1500 |
190 |
60 |
65 |
3N-380V-50HZ |
1.05 |
640 |
150 |
|||||
|
BF-AERVE-2000-XR |
2000 |
190 |
60 |
68 |
3N-380V-50HZ |
1.1 |
640 |
200 |
|||||
|
BF-AERVE-3000-XR |
3000 |
210 |
60 |
69 |
3N-380V-50HZ |
1.67 |
1100 |
320 |
|||||
|
BF-AERVE-4000-XR |
4000 |
250 |
60 |
72 |
3N-380V-50HZ |
2.32 |
1600 |
395 |
|||||
.jpg?imageView2/2/format/jp2)
|

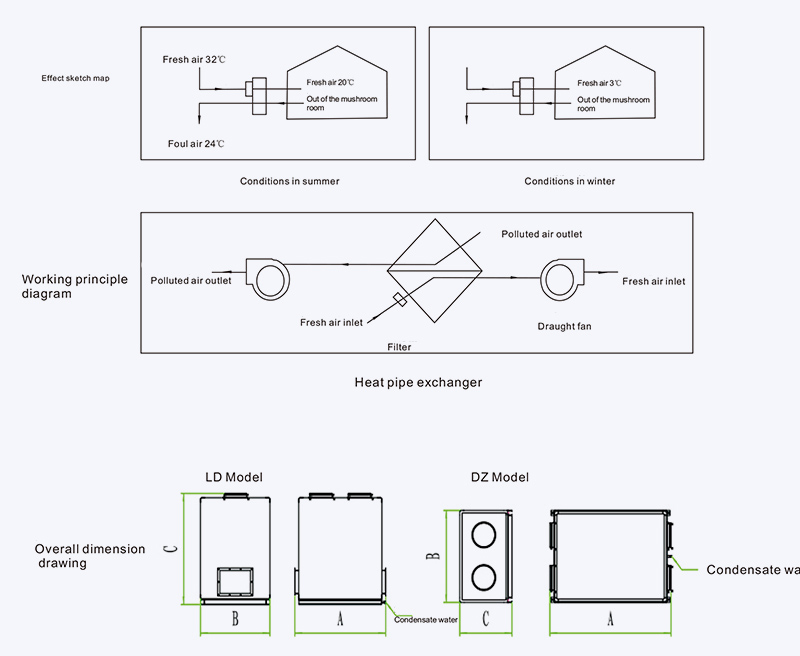

Unit model |
Amm |
Bmm |
Cmm |
water outlet pipe |
|
BF-AERVE-1000-XR-LD |
1220 |
588 |
1218 |
1/2" |
|
BF-AERVE-1000-XR-DZ |
1277 |
1131 |
606 |
1/2" |
|
BF-AERVE-1500-XR-LD |
1220 |
588 |
1278 |
1/2" |
|
BF-AERVE-1500-XR-DZ |
1277 |
1131 |
706 |
1/2" |
|
BF-AERVE-2000-XR-LD |
1220 |
702 |
1360 |
1/2" |
|
BF-AERVE-2000-XR-DZ |
1391 |
1131 |
706 |
1/2" |
|
BF-AERVE-3000-XR-LD |
1220 |
816 |
1360 |
1/2" |
|
BF-AERVE-3000-XR-DZ |
1505 |
1131 |
706 |
1/2" |
|
BF-AERVE-4000-XR-LD |
1220 |
1045 |
1360 |
1/2" |
|
BF-AERVE-4000-XR-DZ |
1720 |
1131 |
706 |
1/2" |
Re: The new energy-saving ventilation unit is low cost and high efficiency equipment, it doesn't need a single set of fresh air handling room, making full use of heat recovery energy saving, greatly reducing the equipment investment and construction cost. At the same time, the cold recovery refrigeration equipment investment and power capacity cost can be reduced by more than 20%. Moreover, according to the needs of users, it can be designed into energy-saving ventilation of fresh airequipment with 5000M3/h.
If you have any questions or need help, please contact us directly, we will provide you with online help and services in time.
